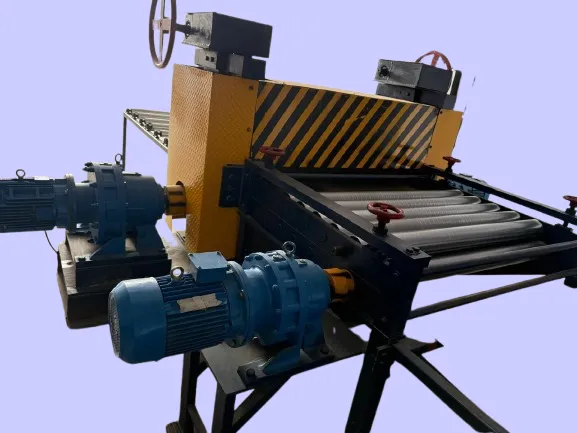

Checkered Plate Embossing Machine

The Checkered Plate Embossing Machine is an industrial sheet embossing machine designed to create anti-slip checkered patterns on metal sheets and plates. It is widely used as a metal sheet embossing machine in applications where surface grip, strength, and long-term durability are required.

This industrial embossing machine is commonly used for producing checkered plates applied in flooring systems, walkways, stair treads, platforms, and structural panels. The machine forms uniform raised checkered patterns on metal sheets while maintaining consistent thickness and material integrity. It is suitable for continuous production environments where heavy-duty embossing and repeatable pattern accuracy are essential.

Industrial Applications

This sheet embossing machine is used in industries where checkered metal plates are required for safety, load-bearing, and anti-slip purposes.

Typical Applications

• Industrial flooring systems

• Access walkways and service paths

• Stair treads and staircases

• Maintenance platforms

• Structural and load-bearing panels

The embossed patterns improve surface grip and significantly reduce slip hazards in industrial and commercial environments.

Materials & Sheet Types Supported

The machine is suitable for embossing various metal sheet types used in industrial fabrication and construction.

Commonly Processed Materials

• Galvanized (GI) sheets

• Mild Steel (MS) sheets

• Other industrial metal plates

Sheet thickness and plate dimensions can be selected based on production requirements and end-use applications.

Embossing System & Working Principle

The embossing system uses precision-machined embossing rollers to apply consistent and controlled pressure across the metal sheet surface.

Embossing Process

As a checkered plate embossing machine, it forms uniform raised checkered patterns that meet industrial safety and durability standards. The machine is capable of applying embossing pressure up to 2300 PSI, and can be configured for higher pressure requirements based on material thickness and application needs.

The controlled embossing process ensures repeatable results, making the machine suitable for continuous production lines and heavy-duty manufacturing environments.

Manufacturing & Quality Assurance

The Checkered Plate Embossing Machines are manufactured at A99 Embossers using precision engineering and industrial-grade raw materials. Each machine undergoes strict dimensional accuracy testing and load performance checks before dispatch.

The manufacturing and inspection process includes:

• Embossing roller hardness testing

• Pressure alignment calibration

• Operational trial runs

These checks ensure long-term durability, stable operation, and consistent embossing quality under industrial working conditions.

Customization Options

Customization options are available based on:

• Sheet thickness

• Required embossing pressure

• Production speed

• Industry-specific applications

This allows the machine to be tailored to different manufacturing requirements while maintaining performance and reliability.
